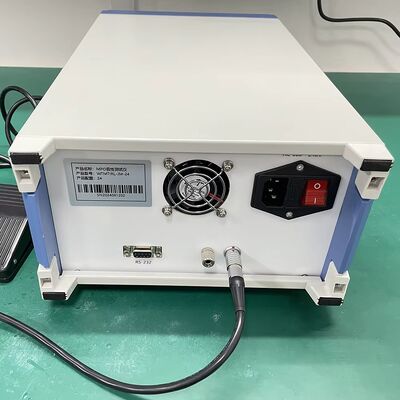

12 Core 24 Core 24 Core 48 Core MPO Polarity Tester For MPO MTP fiber optic Patch cord
Model: CLX-MU9202
Place of Origin:ShenZhen,China
Mpo Polarity Tester Product Descriptions
The MPO/MTP polarity tester is designed for polarity judgment and continuity analysis during the production of MPO/MTP patch cords. The device uses visible red light as the light source, which can not only detect the line sequence status of MPO-MPO patch cords, but also the line sequence status of fan-shaped lines.
Our MPO/MTP line sequence tester provides a fast, accurate and reliable solution for the production, semi-finished product testing and finished product testing of MPO/MTP fiber patch cords.
MPO MTP Polarity Tester Features
1 Compatible with 12,24,16,32,48-cores and other special core testing.
2 Compatible with SM 9/125, MM 50/125, MM 62.5/125 fiber core.
3 Support for user-defined polarity setting.
4 Support for study mode and error alarm
5 Support for error polarity analysis
6 Support for replacement of MPO connector vulnerable parts
7 Support for USB, RS232, and upper monitor application.
MPO Patch Cord Polarity Tester Specification:
|
1. Product Name
|
Mpo Polarity Tester
|
|
2. Model
|
CLX-MU9202
|
|
3. Application
|
MPO Patch Cord Production
|
|
4. cable core
|
12/24/32/48 Core
|
|
4. Applicable fiber type
|
9/125 ,50/125 及 62.5/125
|
|
5. Operation temperature
|
-5～+40 ℃
|
|
6. Power supply
|
110VAC/220VAC 50HZ
|
|
7. Storage conditions
|
-25～+70 ℃ |
|
8. Size
|
240*400*160 (mm)
|
|
9. Net Weight / Gross Weight (kg)
|
4.0 kgs / 4.5 kgs
|
Packaging and delivery
Selling Units:
Single item
Single package size:
45*36*25 cm (length x width x height)
Single gross weight:
4.5 KG
5555555
Company profile:
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010.
Is an optical communications equipment company integrating research and development,
production, after-sales service and technical services.
We not only sell high-quality products and provide good after-sales service,
but also provide free technical support to our customers. For the technical problems
encountered in the production of optical fiber patch cord, there are good solutions.
About shipping:
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies,
you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
-MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
